Power and Free Conveyor Powder Coating Plant for alumium profiles painting

FOB Reference Price:Get Latest Price
US $100,000-250,000 / Set | 1 Set/Sets Power and Free Conveyor Powder Coating Plant (Min. Order)
Supply Ability:
100 Set/Sets per Year Power and Free Conveyor Powder Coating Plant
Port:
Tianjin
Overview
Quick Details
Condition:
New
Type:
Coating Production Line, power and free conveyor type powder coating line
Substrate:
Aluminum
Coating:
Powder Coating
Place of Origin:
Hebei, China (Mainland)
Brand Name:
Huamei
Model Number:
HM
Voltage:
customized
Power(W):
40~60KW
Dimension(L*W*H):
customized
Weight:
10 Tons
Certification:
CE ISO
Warranty:
12 months
After-sales Service Provided:
Engineers available to service machinery overseas
Feature:
High efficiency
Advantage:
very compact space required
powder coating booth material:
SS304,PP,PVC or powder coated steel
Electric control parts:
International Brand
Heating energy for the curing oven:
Gas,LPG,diesel oil or electricity for powder coating line oven
Burner:
Italy Brand
powder coating method:
automatic painting and manual touch up
painted product:
aluminum profiles mainly or similar size product
entire powder coating plant:
two 40ft containers required
Packaging & Delivery
Packaging Details
Power and Free Conveyor Powder Coating Plant packing by air cushion film
Delivery Time
60 days after receipt the payment
Video Description
Product Description

Product Application

We are professional in any kind of powder coating plant design,manufacture,installation,test run,training and thoughtful after sale service in home and abroad.

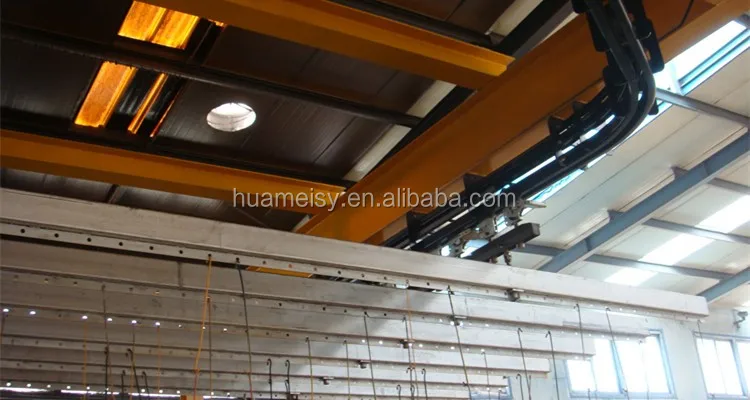

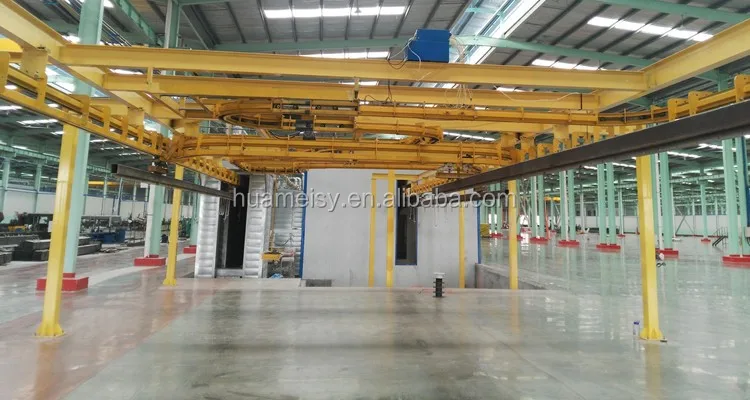

Power and free conveyor is highly automatic and integrative, which can stop individual loads without stopping the entire production line. The main conveyor is moving continuously, but another loading conveyor just move step by step (position: inside the oven, loading & unloading area). The output capacity can be very big if the main conveyor speed is fast, no need to enlarge the oven size. So it takes smaller space than the common tunnel oven design.

Inspired technology

1.Power & Free Conveyor Design .Power & Free conveyors are twin-rail systems using a power chain to haul the carriers. The power chain is equipped with evenly spaced rigid dogs, which latch onto the movable cam on the trolley to form an interlocking connection.
2.Stops and contact skids allow the carriers to be automatically stopped, closely buffered and automatically released as required.
3.Carrier spacing and moving speeds are variable and can be set independently for each individual chain circuit.
If needed, P & F conveyors can also be equipped with destination controls, which also provide solutions to complicated distribution, sorting and special task problems.

Automatic spraying line of pretreatment
No
Name
Quantity (set)
Remarks
1
Automatic spraying line of pretreatment
1

2
Power and free conveyor
1

3
Powder curing oven
2

4
Heat exchanger for curing
1

5

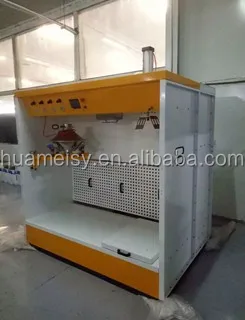

Powder spraying booth
1

6

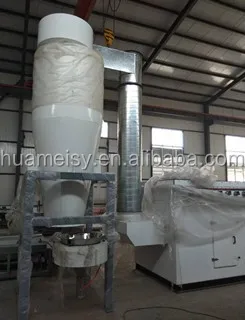

Powder recycle system
1

7
Auto spraying gun
8
According to the products
8
Manual spraying gun
2

9
Powder supply center
1

10

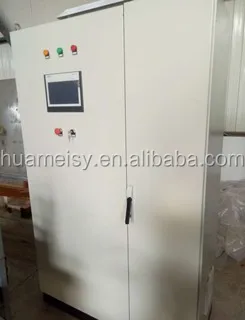

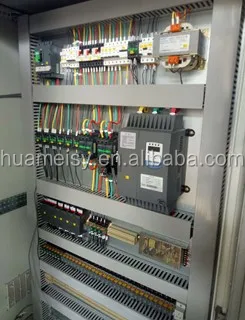

Electric control system
4

11

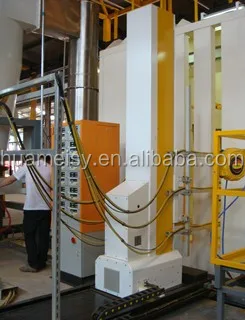

Reciprocator
2

Power& Free Conveyor Advantages

1.Compact design with buffering mechanisms inside the track.
2.Flexible installation with minimum space requirements.
3.Allow chain transfer at any time, regardless of dog spacing.
4.Fully automatic operation with hierarchical control system with user-friendly visualization interface.
5.Control functions can be linked to central plant computer system.
6.High availability through modular design, easily exchangeable components, quick repair of breakdowns.
7.Transfer-free carrier movement, including at lifting stations.

Product Pictures

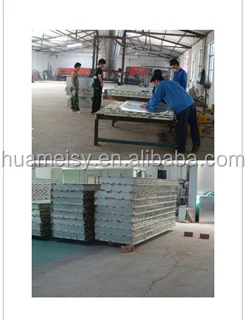

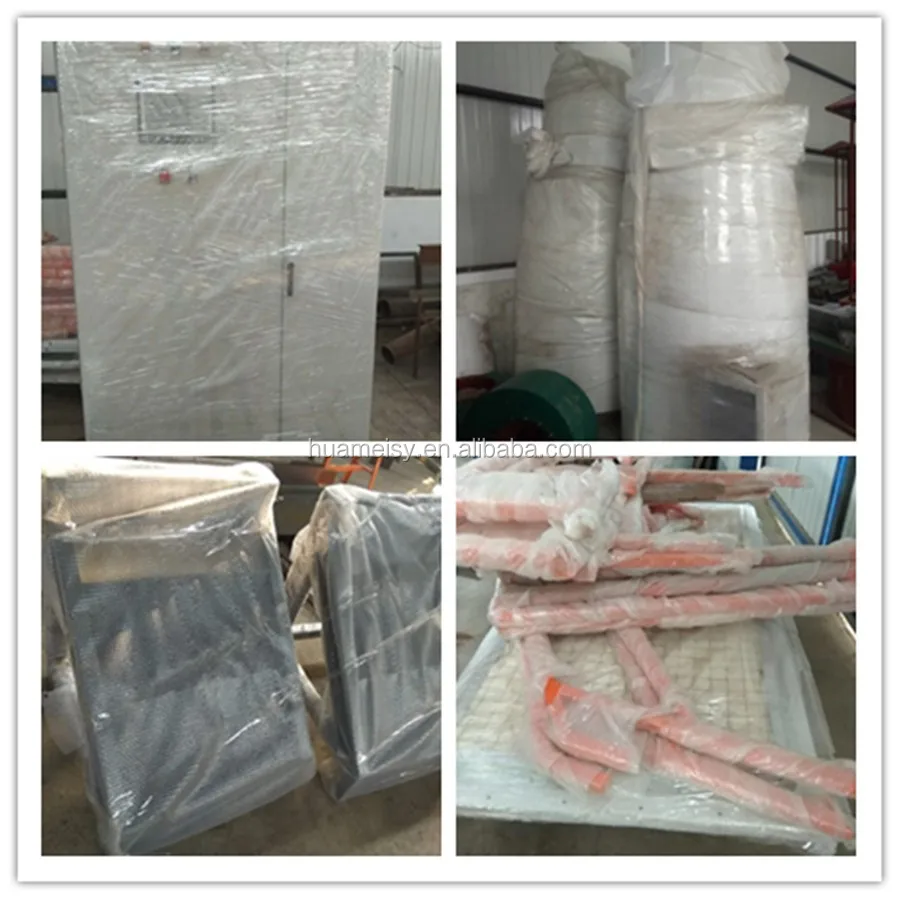

Packing & Delivery

According to the characteristics of products, transportation, environmental factors .We use foam, cartons, wooden case and other professional packaging, through heavy card, container, bulk carrier and other transportation tools .put the goods safe and timely to the customer.

Our Service

Quality and Service Commitment Our company always put the interests of customers and product quality to the first place,and always adhere to the"no best, only better" as our purpose. We will be commitment to provide high quality products with perfect site services and after-sales service. Now the specific commitments are as follows:
1. Ensure to timely provide complete sets of equipment and accessories.
2. Ensure that one-time installation debugging acceptance.
3. To provide high quality material with preferential price.
4. Priority to provide customer our new craftworks and products.
5. Free training technological operator to ensure the trained staff can operation independently.
6. In the installation process,we will appoint a installation supervision staff on the spot.
7. we will offer experienced engineers, organize a good installation team for the work of field installation debugging.
8. After the equipment field assembly and installation, we will be also responsible for the single equipment debugging, online debugging and Feeding trial operation,to ensure that equipments can normal operate in full load conditions.We will provide all kinds of information and records according to the requirements of the bid.The qualified completion files will be provided to customers according to their requirements within one month after acceptance.

Buyer Feedback

To provide you more details and quotation, would you pls let me know the following information:
1. What is the max and min size for painted product? Would you pls send us some pictures for your product?
2.The max weight of the workpiece
3. The material of the workpiece
4. How many pieces will you paint in one hour or one day?
5. Do you need to change colors every day? How many colors do you have in total?
6. What is your available space for this powder coating line project(length,width and net height)?
7. What is the heating source?(natural gas,LPG,dieseloil,electricity)
8. What kind of pretreatment system do you need?(sand or shot blasting, dipping tank type or spray pretreatment by chemical liquid?)
9. The local electricity conditions(_V/_Phase/_Hz).
10. Do you have any special requiremnts about the package?
We like to provide you our full suport for your powder coating line project.

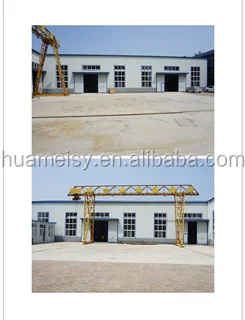

Our Company
