High Quality Aluminum Profile Epoxy Automatic Powder Coating Plant

FOB Reference Price:Get Latest Price
US $100,000-250,000 / Set | 1 Set/Sets automatic powder coating plant (Min. Order)
Supply Ability:
100 Set/Sets per Year automatic powder coating plant
Report Suspicious Activity
Quick Details
Coating Production Line, Horizontal Automatic powder coating line
Powder Coating
Place of Origin:
Hebei, China (Mainland)
Brand Name:
Model Number:
12 months
After-sales Service Provided:
Engineers available to service machinery overseas
High efficiency
very compact space required
Heating energy for the curing oven:
gas,LPG,diesel oil or electricity for powder coating line oven
powder coating booth material:
SS304,PP,PVC or powder coated steel
Italy Brand

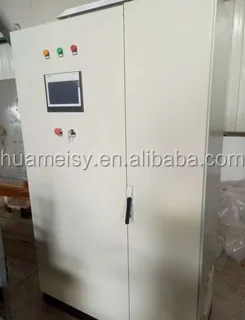

Electric control parts:
International Brand
Delivery time:
30~90 days after receipt payment
Payment terms:
TT or LC
powder coating line packing:
wooden box or air cushion film
Packaging & Delivery
Packaging Details
automatic powder coating plant packing:
air cushion film
Delivery Time
60 days after receipt the payment
Video Description
Product Description

Product Application

Powder Coating Production line is used in various industries such as for electrical appliances, hardware, aluminum profile, building materials, automotive, motorcycle, bicycle, traffic fence, sports equipment, medical equipment, and steel furniture.
Powder Coating Production line consists of stainless steel powder coating booth, manual spray gun, reciprocator, fast change color recovery system, curing oven, heat exchange system, conveyor chain.
The production line size is according to the client requirement, such as products’ size, capacity, factory size and so on.
Different client has different scale.

Surface pretreatment

To get a clean and protected surface of the work piece before coating, it is needed to prepare the surface of the work pieces with the actually needed pre-treatment method.
dip pre-treatment plant is used for especially heavy and long work pieces, e.g. aluminium profiles. In most cases the plant is fitted into the floor, this to avoid unnecessary lifting height when the work pieces are moved trough the processes.
Dependent on the work pieces and capacity, dip plants can be delivered included manual or automatic crane for the transport of work pieces

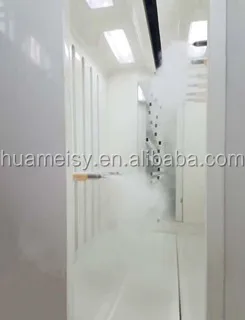

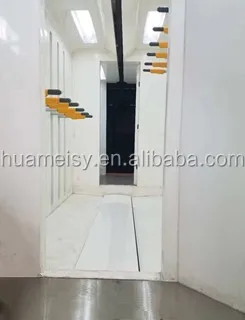

Powder booth

Various range of industrial powder booths is based on a modular concept, which enables each booth to be customized to suit any specific requirement. The size of the Manual & Automatic Booth is determined by the size, the speed and the shape of the objects to be coated. The high efficiency cyclone collector recovers as much as 98% plus of the powder exhausted from the booth. It has 2880 rpm motor with highly efficient impeller given a rotary motion which creates a centrifugal force on particles. After filter Bag System for Non-Pollution Area.
Exclusive Features:
Optimal system design to ensure powder containment while meeting industry safety standards
Maximum recovery efficiency
Multiple color capabilities
Easy cleaning
All filter media accessible and easily replaced
Minimal maintenance required
Versatile design to meet changing production requirements
Optimum use of plant floor space
Minimal plant air and energy requirements
Safe operational noise levels

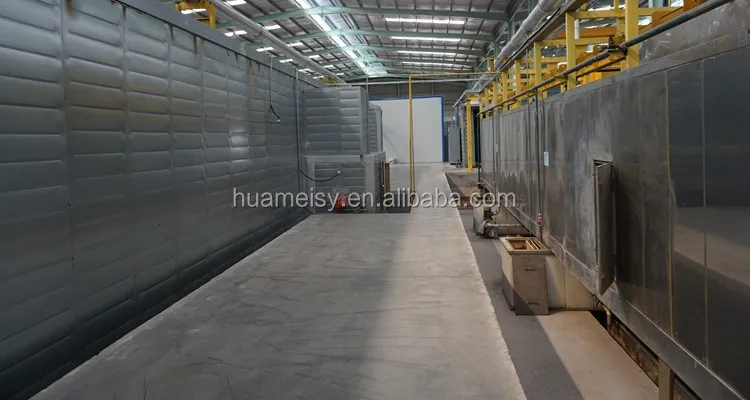

Curing oven

Whether electrical, gas or diesel fired. Whether batch type or conveyorized tunnel type. Designed and built specially for Powder & Liquid curing purposes assuring you of low power consumption with uniform temperature throughout the working space in the oven.
Melting & Curing constitutes a highly critical phase of the powder coating process. The curing schedules recommended by the powder or liquid supplier must be strictly followed, if good adhesion & corrosion resistance is to be achieved. While powder melts at approx.100°C, curing requires higher temperatures usually between 180°C to 200°C.If the curing is inadequate, the quality will be brittle and flake-off easily. If the powder coat is exposed to harsh heat its colour may change.
Welded or modular construction with high quality M.S Sheet
Hot air circulating blower for uniform heat
High quality insulation (Glass/mineral wool) to eliminate heat loss
Electrical,gas& diesel fired (heat exchanger)
Digital temperature controller with auto on/off or manual
Asbestos gasketing, flap sliding doors
Perfect locking arrangement and heat resistant paint(inside)

Workpiece material
Equipment size
According to the work piece size, yield and customer building size
Coating way
Automatic spray powder + artificial fill spray
Production line speed
0.5--5.0m/min (adjustable)
220VAC; 380VAC;50Hz;Voltage fluctuation range:±10%
Product Pictures

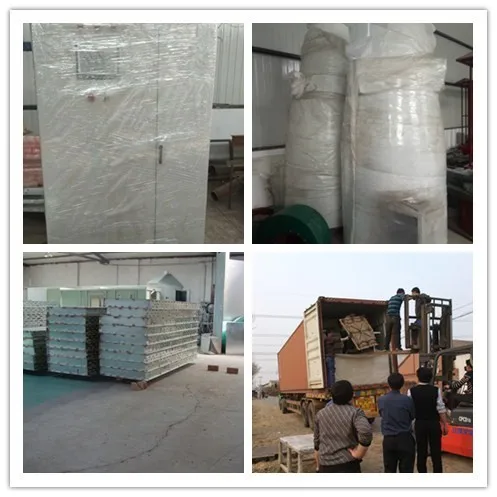

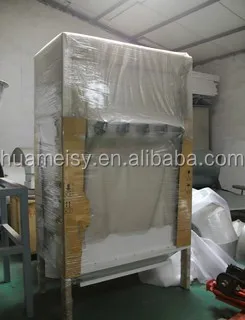

Packing & Delivery

According to the characteristics of products, transportation, environmental factors .We use foam, cartons, wooden case and other professional packaging, through heavy card, container, bulk carrier and other transportation tools .put the goods safe and timely to the custome

Our Service

Quality and Service Commitment Our company always put the interests of customers and product quality to the first place,and always adhere to the"no best, only better" as our purpose. We will be commitment to provide high quality products with perfect site services and after-sales service. Now the specific commitments are as follows:
1. Ensure to timely provide complete sets of equipment and accessories.
2. Ensure that one-time installation debugging acceptance.
3. To provide high quality material with preferential price.
4. Priority to provide customer our new craftworks and products.
5. Free training technological operator to ensure the trained staff can operation independently.
6. In the installation process,we will appoint a installation supervision staff on the spot.
7. we will offer experienced engineers, organize a good installation team for the work of field installation debugging.
8. After the equipment field assembly and installation, we will be also responsible for the single equipment debugging, online debugging and Feeding trial operation,to ensure that equipments can normal operate in full load conditions.We will provide all kinds of information and records according to the requirements of the bid.The qualified completion files will be provided to customers according to their requirements within one month after acceptance.
9. In the warranty period, all because of the quality of products has caused the damage or failure of equipment,suppliers will take the responsibility for the free repair and replacing spare part. Due to the damage caused by the customer,we only charge material costs for repair and replacement.

Buyer Feedback

To provide you more details and quotation, would you pls let me know the following information:
1. What is the max and min size for painted product? Would you pls send us some pictures for your product?
2.The max weight of the workpiece
3. The material of the workpiece
4. How many pieces will you paint in one hour or one day?
5. Do you need to change colors every day? How many colors do you have in total?
6. What is your available space for this powder coating line project(length,width and net height)?
7. What is the heating source?(natural gas,LPG,dieseloil,electricity)
8. What kind of pretreatment system do you need?(sand or shot blasting, dipping tank type or spray pretreatment by chemical liquid?)
9. The local electricity conditions(_V/_Phase/_Hz)
10. Do you have any special requiremnts about the package?
We like to provide you our full suport for your powder coating line project.

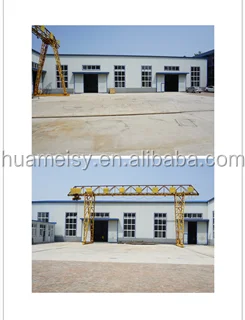

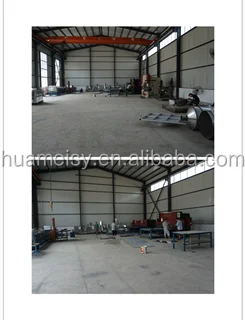

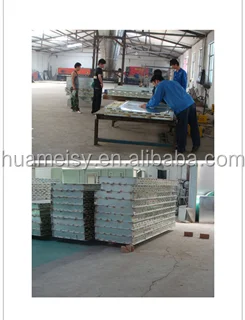

Our Company
Contact Us

If you need our products, or need our help, please contact us:
Tel: 86-13930604957
Contact person:Wendy or Jack
